How to Organize the U.S. General 44" Roller Cabinet

The 44-inch U.S. General roller cabinet is one of the best storage values in a home garage, and it is also the box most people organize badly. The double-bank layout gives you around a dozen drawers in narrow, wide, and extra-wide widths, which sounds like plenty of room right up until every drawer holds a little of everything and you are opening four of them to build one socket set.

Here is a layout that works, and the reasoning behind it, so you can adapt it to your own tools instead of copying someone else's drawer photos.

Start with frequency, not category

The instinct is to group by type: all sockets in one drawer, all wrenches in another, all screwdrivers in a third. It looks tidy and it wastes motion. Every job pulls from several categories at once, so a category layout means every job means opening several drawers.

Sort by how often you reach for something instead:

• Top drawers — the tools you touch on almost every job. For most people that is 1/4-inch and 3/8-inch sockets, two or three ratchets, and the wrench sizes you actually use (10mm, 12mm, 13mm, 14mm, 1/2-inch, 9/16-inch).
• Middle drawers — job-specific tools. Pliers, punches, pry bars, specialty sockets, electrical tools.
• Bottom drawers — heavy and occasional. Breaker bars, torque wrenches, impact guns, cased kits.

Weight belongs low for a second reason. A roller cabinet loaded top-heavy gets unpleasant to move and a lot less stable with a drawer open.

Measure the drawer, not the tool

Before you buy or print a single organizer, measure the usable interior height of each drawer, then subtract the thickness of the liner you plan to keep in it. That is your real ceiling. Configurations of this box have changed across model years and series, so the drawer heights in a video from three years ago may not match the box in your garage.

The number that surprises people is how little clearance a shallow drawer leaves once a socket is standing in a tray. Deep sockets in an upright tray need more height than most shallow drawers have. Lay them flat, or put deep sockets in a taller drawer and keep the shallow drawers for shallow sockets.

The liner problem

The fitted liners that come with the box protect the drawer bottom and do nothing to stop tools from moving. Open a drawer fast, and everything slides to the back. Close it, and everything slides forward. Over a few months, that is how a sorted socket tray turns back into a pile.

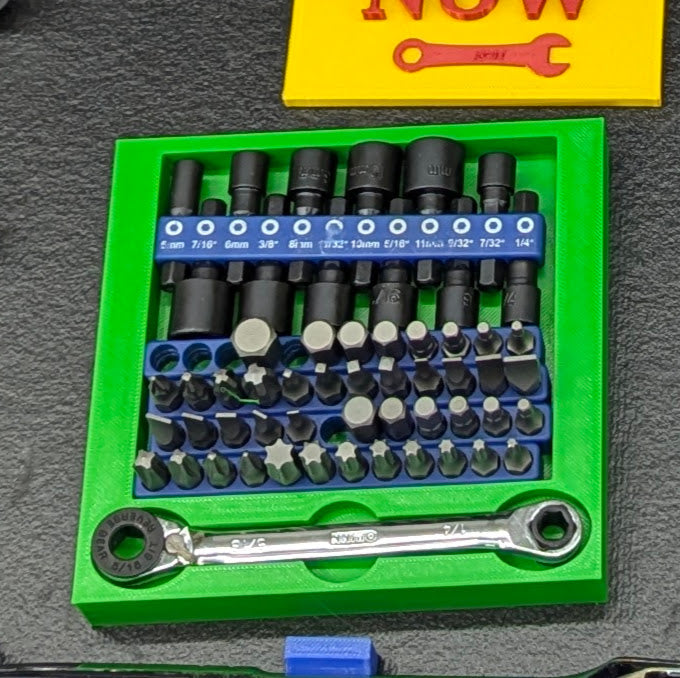

Two things fix it. Trays with deep enough pockets that tools cannot hop out, and magnets holding the organizer itself to the steel drawer bottom so the tray does not travel. This is why our wrench organizer blocks, ratchet organizers, and breaker bar organizers have neodymium magnets embedded in them: the tool holds the wrench, and the magnet holds the tool.

Give every drawer one job

Once a drawer has a defined purpose, gaps become obvious. An empty slot in a socket tray tells you a socket is missing before you need it, which is a much better time to find out. A drawer that holds a bit of everything can never tell you anything.

Label after you have lived with the layout for a week or two, not before. The labels that come with the box are fine, but you will move things around during the first week, and re-labeling a drawer three times is how people give up on labeling.

A layout to start from

• Drawer 1 — 1/4-inch drive: sockets, ratchet, short extensions, bit drivers.
• Drawer 2 — 3/8-inch drive: shallow sockets SAE and metric, kept separate, plus your primary ratchet.
• Drawer 3 — combination wrenches, metric and SAE in separate blocks.
• Drawer 4 — screwdrivers, bits, hex and Torx keys.
• Drawer 5 — pliers and cutters.
• Drawer 6 — 1/2-inch drive, deep sockets, longer extensions.
• Wide drawers — hammers, pry bars, specialty tools.
• Deep bottom drawer — impact gun, torque wrench, breaker bar, cased sets.

Separating SAE from metric in that list is deliberate. Mixing them in one tray means reading numbers on every socket, every time, and grabbing a 1/2-inch when you wanted 13mm.

Do it in one drawer at a time

Emptying the whole box on a Saturday is how organization projects end up half-finished and worse than where they started. Pick the drawer that annoys you most, fix that one properly, and use it for a week. You will learn what you actually reach for, and the next drawer will be easier to plan.

Our organizers are printed to order in PETG or ABS depending on availability, with production usually running about 7 business days. You can see the full range in the tool organizers collection.
